Carbonization technology

ASD has expanded new possibilities for recycling through its carbonization device system.
js24

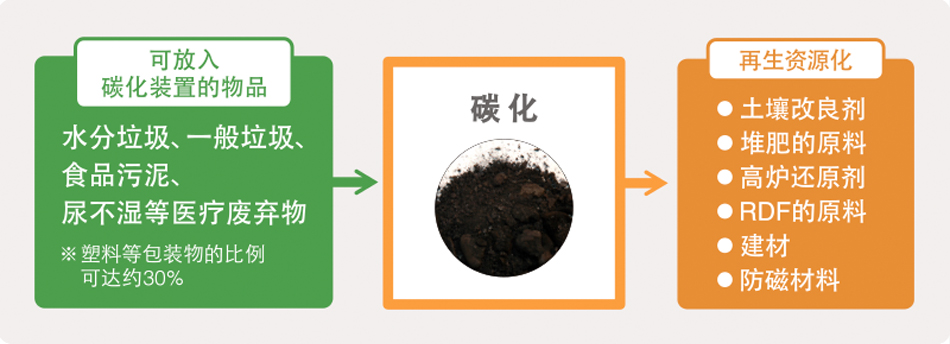

When the treatment object is food waste, even if it is mixed with other packaging materials, it can be carbonized.
This system aims to convert food waste, packaging materials and sludge generated by hotels, food factories, etc. through carbonization into raw materials that can be reused as soil conditioners, purifiers, deodorants and fuels, etc., to achieve resource reuse.
Items not suitable for disposal/items containing a large amount of individual or mixed items, such as chlorinated polyethylene products (PVC products), expanded polystyrene products (foam plastics), petroleum, waste oil, volatile components (such as alcohol, etc.), metal, glass, ceramics, etc.
Carbonization system product series
Batch carbonization device​​​​​​​
Continuous carbonization device​​​​​​​
High pressure steam carbonization device​​​​​​

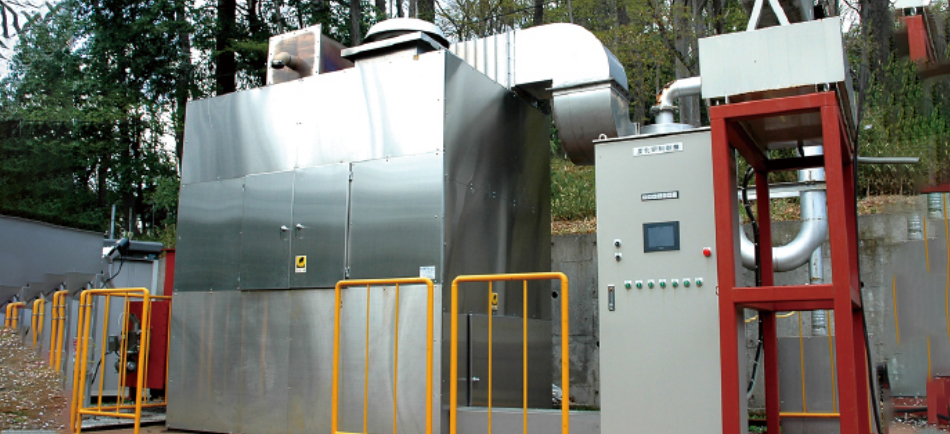

Batch carbonization device

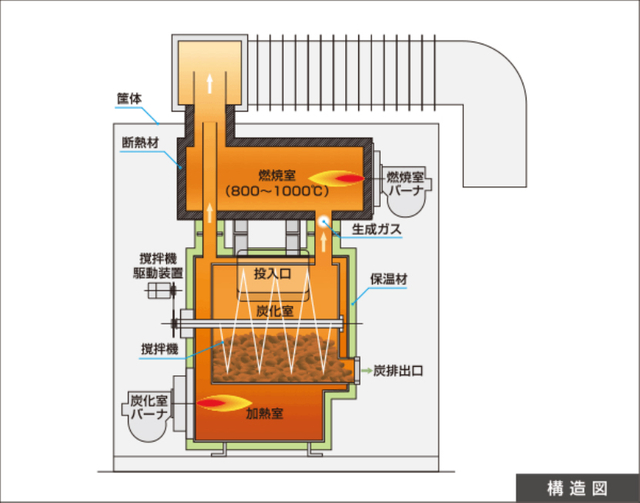

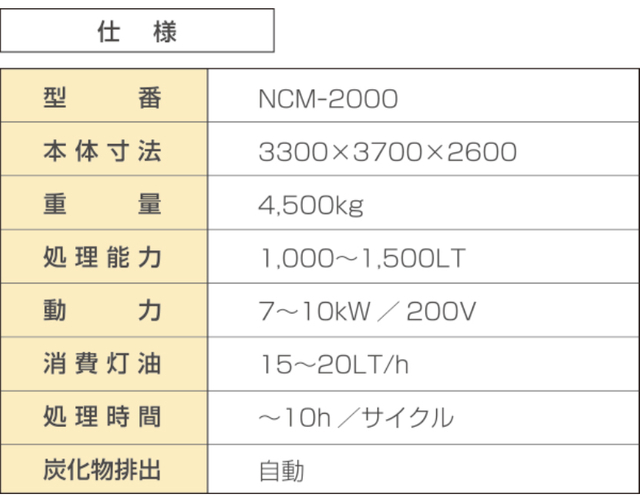

Carbonization [Indirect heating method/NCM series]
1
high performance
The equipment can automatically determine the carbonization time based on the conditions of the processed materials and automatically complete the carbonization process.
2
Environmental legal compliance
Complies with the '2006 Waste Incineration Facilities Structure, Maintenance and Management Standards'. Equipped with gas (CO2) and temperature measurement devices, equipped with a continuous recording carbon monoxide concentration meter and a continuous recording thermometer.
3
High operability
Just press the switch after putting it in. After carbonization is completed,
Automatic discharge can be achieved by button operation.
4
intensive

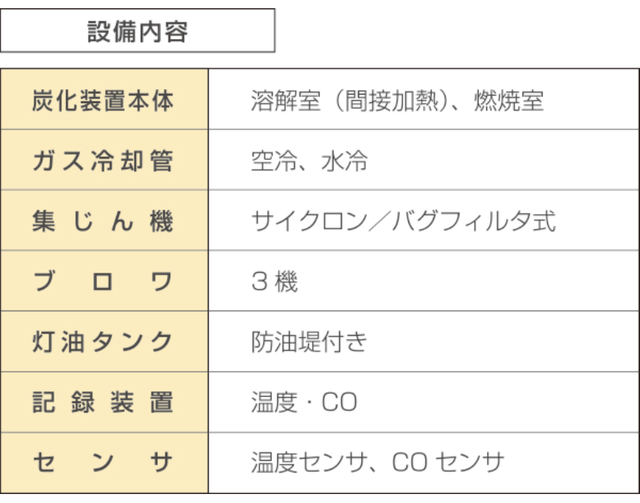

Equipped with exhaust gas cooling device and dust collector, compact design.

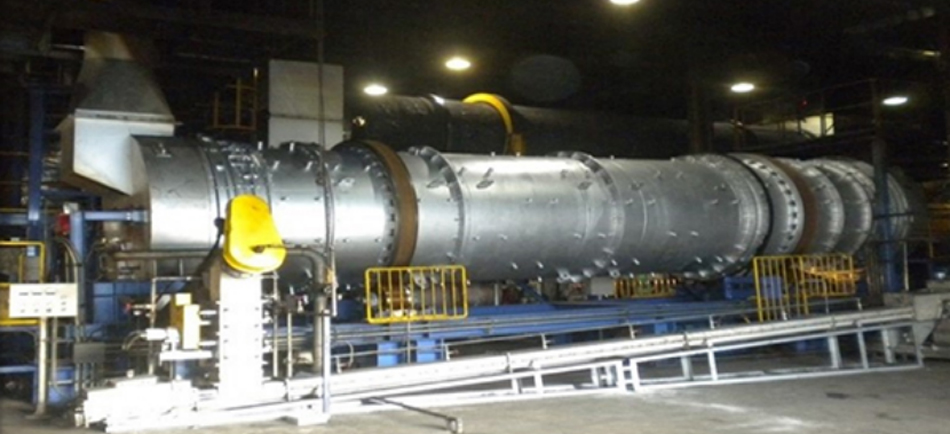

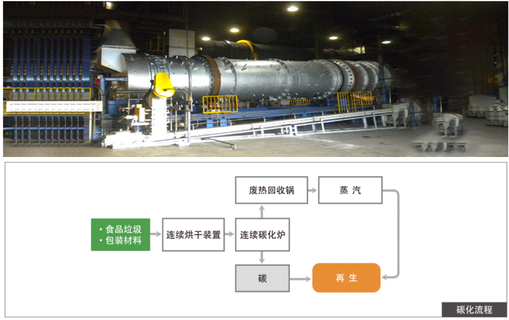

Continuous carbonization device
carbonization [indirect heating method/self-ignition type]


  • Efficiency
    Due to its continuous design, it can handle large volumes of materials in a short time.

    Low cost
    Since the dry distillation gas generated by the carbonization device is used as the main fuel, the fuel cost is extremely low.

    Customized services
    According to the processing materials and processing volume, the specifications of the drying device and carbonization device are designed and customized to meet the actual needs of customers.​​​​​​​


    • 4

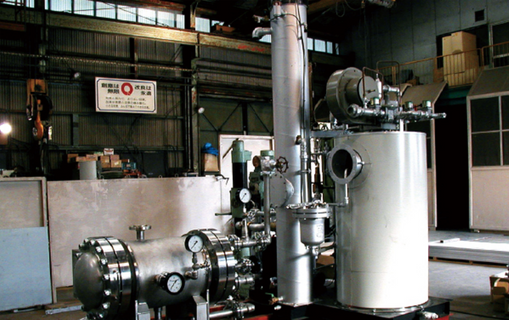

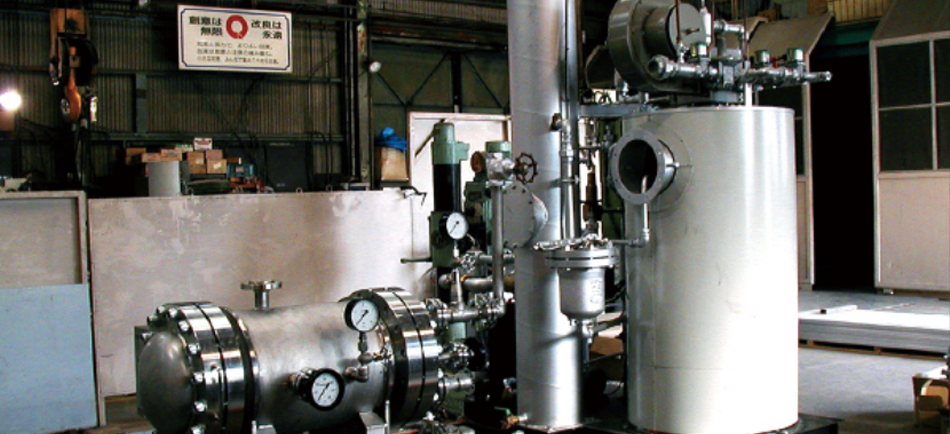

The high-pressure steam carbonization device
uses high-pressure water vapor of 1.5 to 2 MPa to modify trees and organic waste, and can reach a quasi-carbonization state in a short time (about 1 hour).


  • High operability
    Automatic operation is achieved through start button operation.
    The internal blades are responsible for crushing, mixing and automatic discharge.

    Environmentally friendly
    It can recycle carbonized waste liquid without emitting smoke.

    High calorific value carbide​​​​​​​​​​​​​
    After a short period of modification to achieve carbonization, wood charcoal can be used as a fuel with high calorific value.​​​​​​​


    • 4
